ΠΙΡΟΥΝΕΣ ΑΝΥΨΩΣΗΣ & ΜΕΤΑΦΟΡΑΣ ΦΟΡΤΙΩΝ
Κωδικός Είδους: 1054

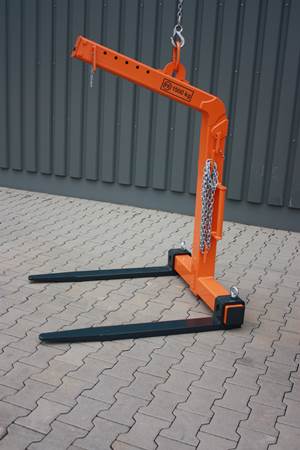

1054 Crane Fork
adjustable forks
automatic balancing
Technical Specifications
Automatic weight compensation by compression spring. Ball-bearing, maintenance-free PVC rolls in top section.
Fork spacing infinitely adjustable manually from 450 to 950 mm. Working height adjustable by pin system from 1150 to 1750 mm.
Available with safety chain, safety cage or loading box of standard size or any special size to order.
Prong length 1.0 m in standard version, fabricated in full material. Scope of delivery: 4.0 m security chain.
Automatic balancing is working best from 30 % loading capacity.
Dimensions
|
Type
|
Load C.
|
|
1054.1
|
600
|
|
1054.2
|
1000
|
|
1054.3
|
1500
|
|
1054.4
|
2000
|
|
1054.5
|
3000
|
|
|
|
|
Light-duty version
|
|
1054.6
|
600
|
|
1054.7
|
1000
|
|
1054.8
|
1500
|
|
1054.9
|
2000
|
|
1054.10
|
3000
|
Κωδικός Είδους: 1051-1

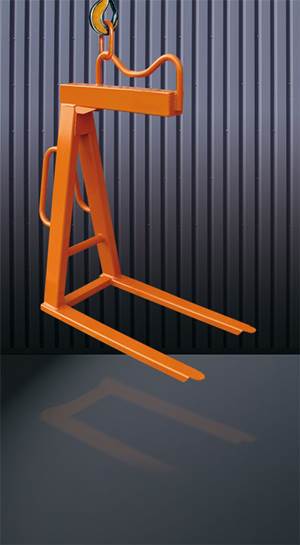

1051 Crane Fork
static forks, manual
balancing, self balancing
Technical Specifications
Simple yet rugged steel construction with pre-defined useful height and fixed prong spacing.
Optional with double hanger for relocating the centre of gravity of the load manually or tension spring for automatic weight compensation.
Dimensions
|
Type
|
Load C.
|
|
Crane fork with manual balancing
|
|
1051.1
|
600
|
|
1051.2
|
1000
|
|
1051.3
|
1500
|
|
1051.4
|
2000
|
|
1051.15
|
2500
|
|
1051.5
|
3000
|
|
|
|
|
Crane fork with self balancing
|
|
1051.6
|
600
|
|
1051.7
|
1000
|
|
1051.8
|
1500
|
|
1051.9
|
2000
|
|
1051.19
|
2500
|
|
1051.10
|
3000
|
